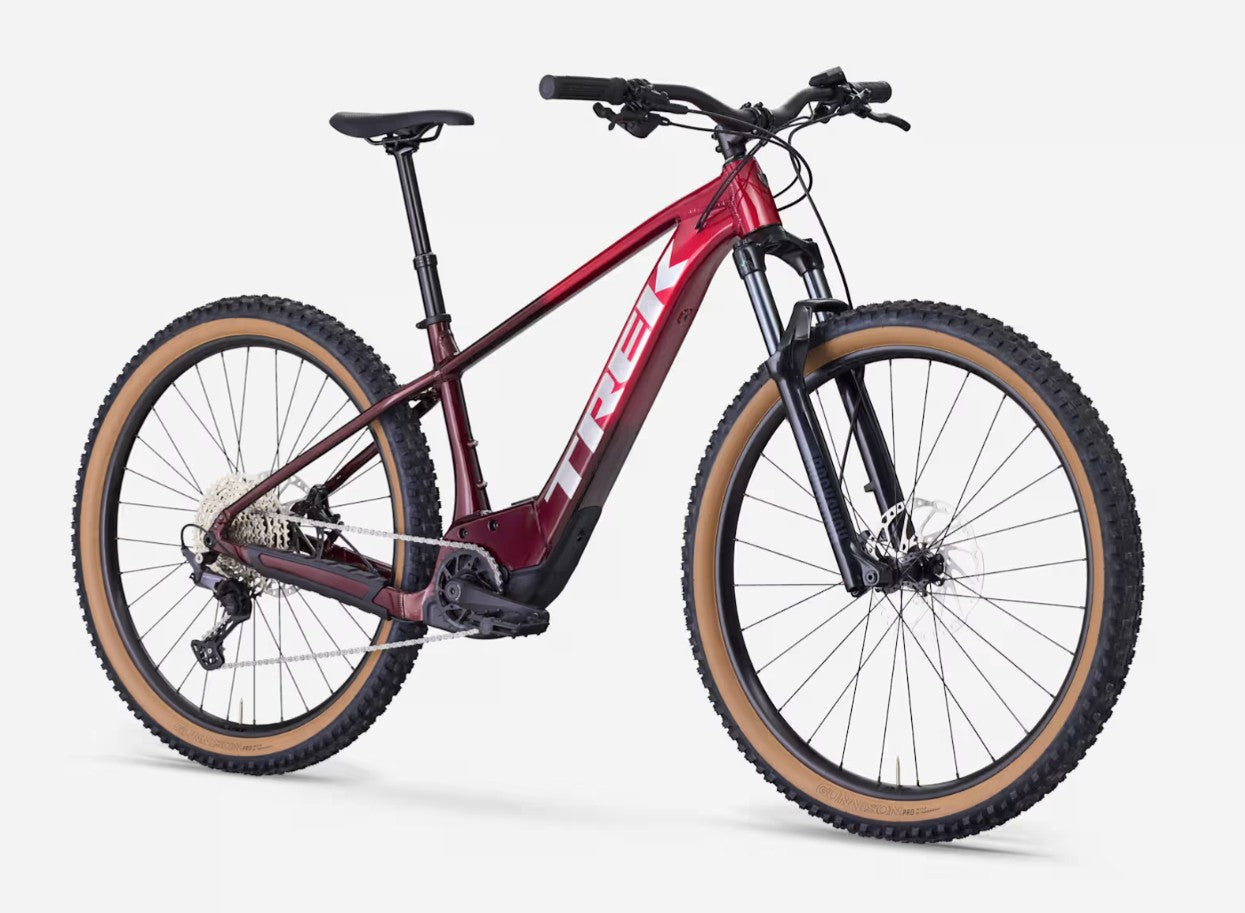

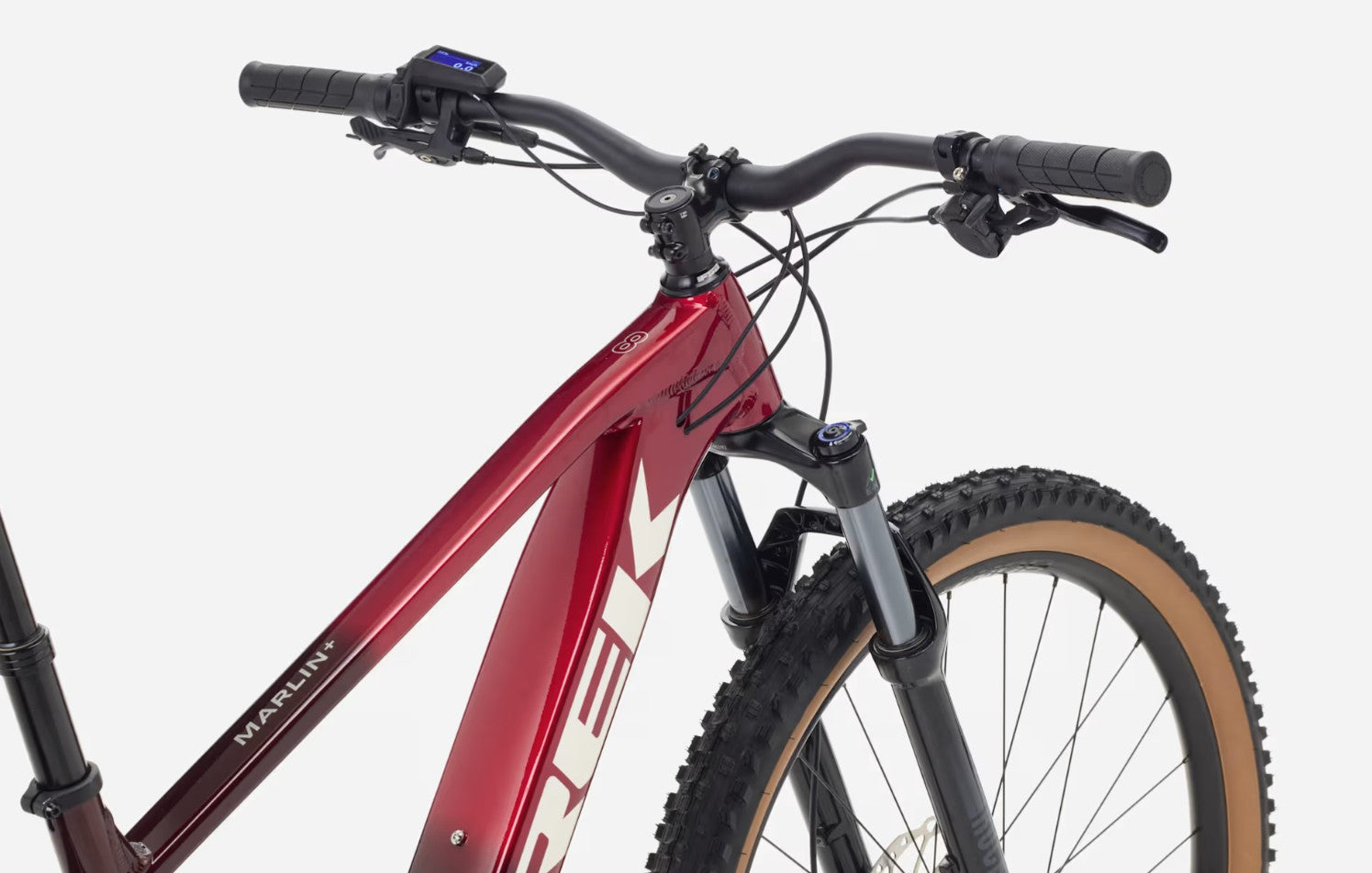

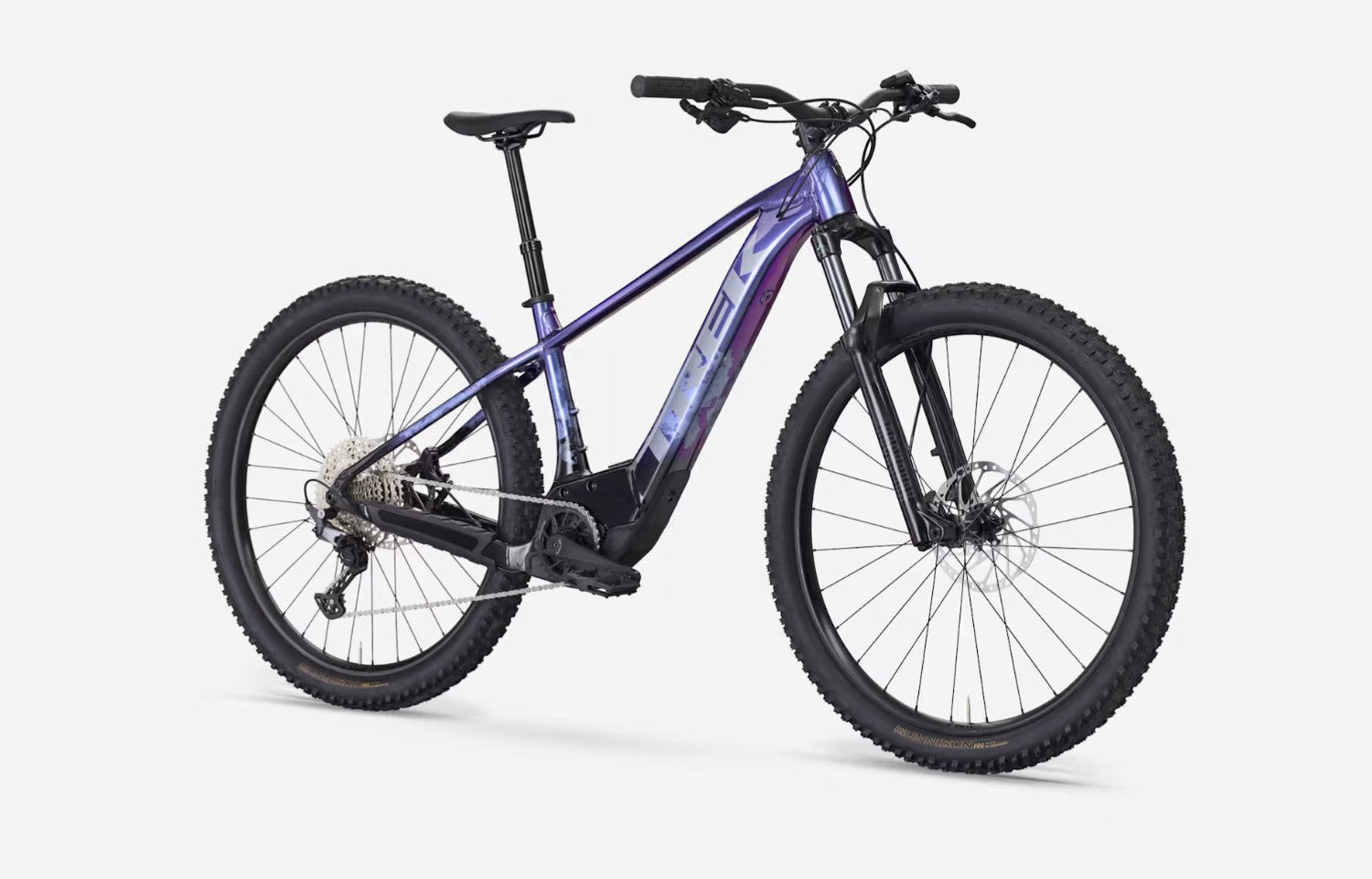

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail.

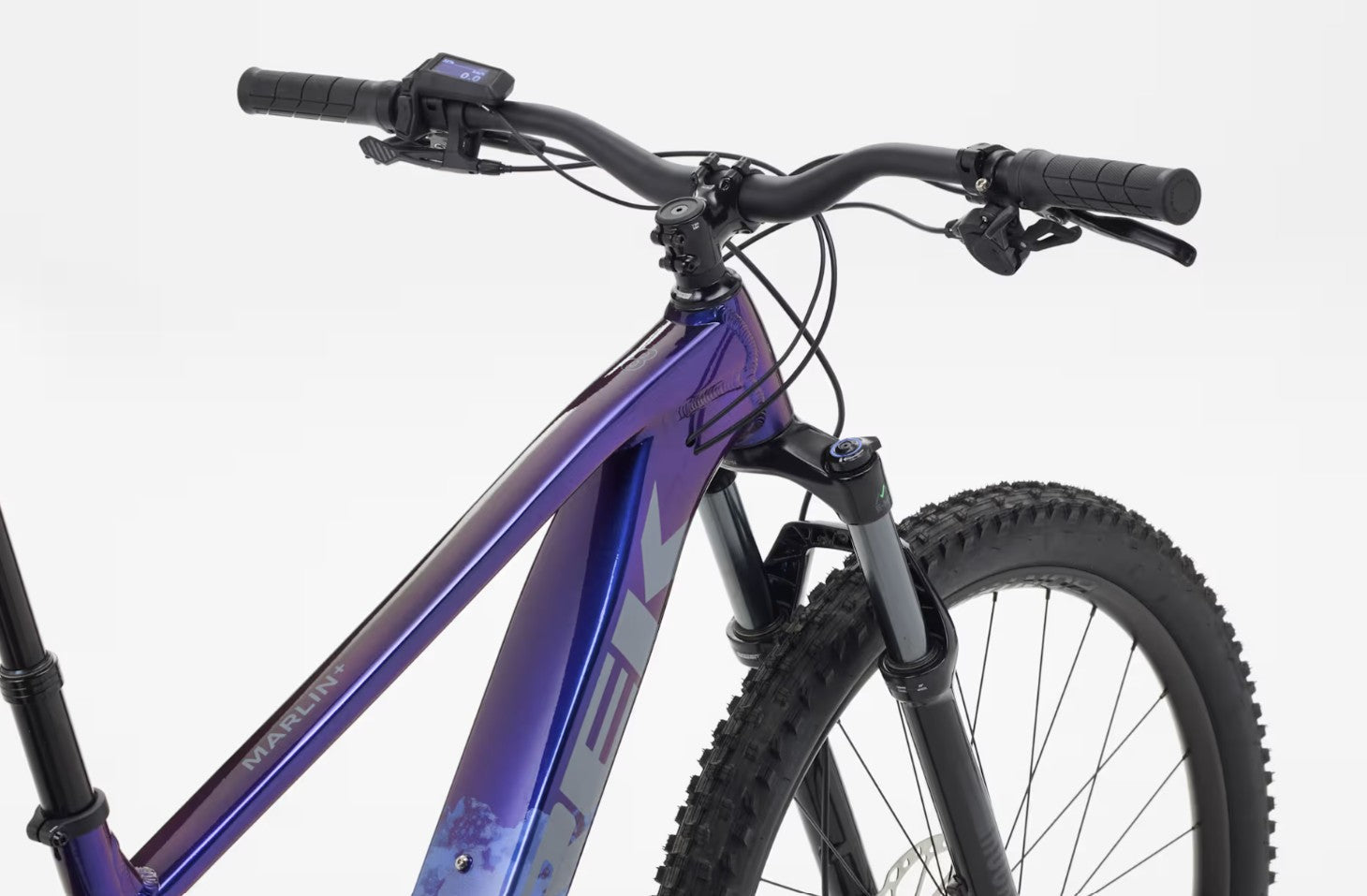

Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff.

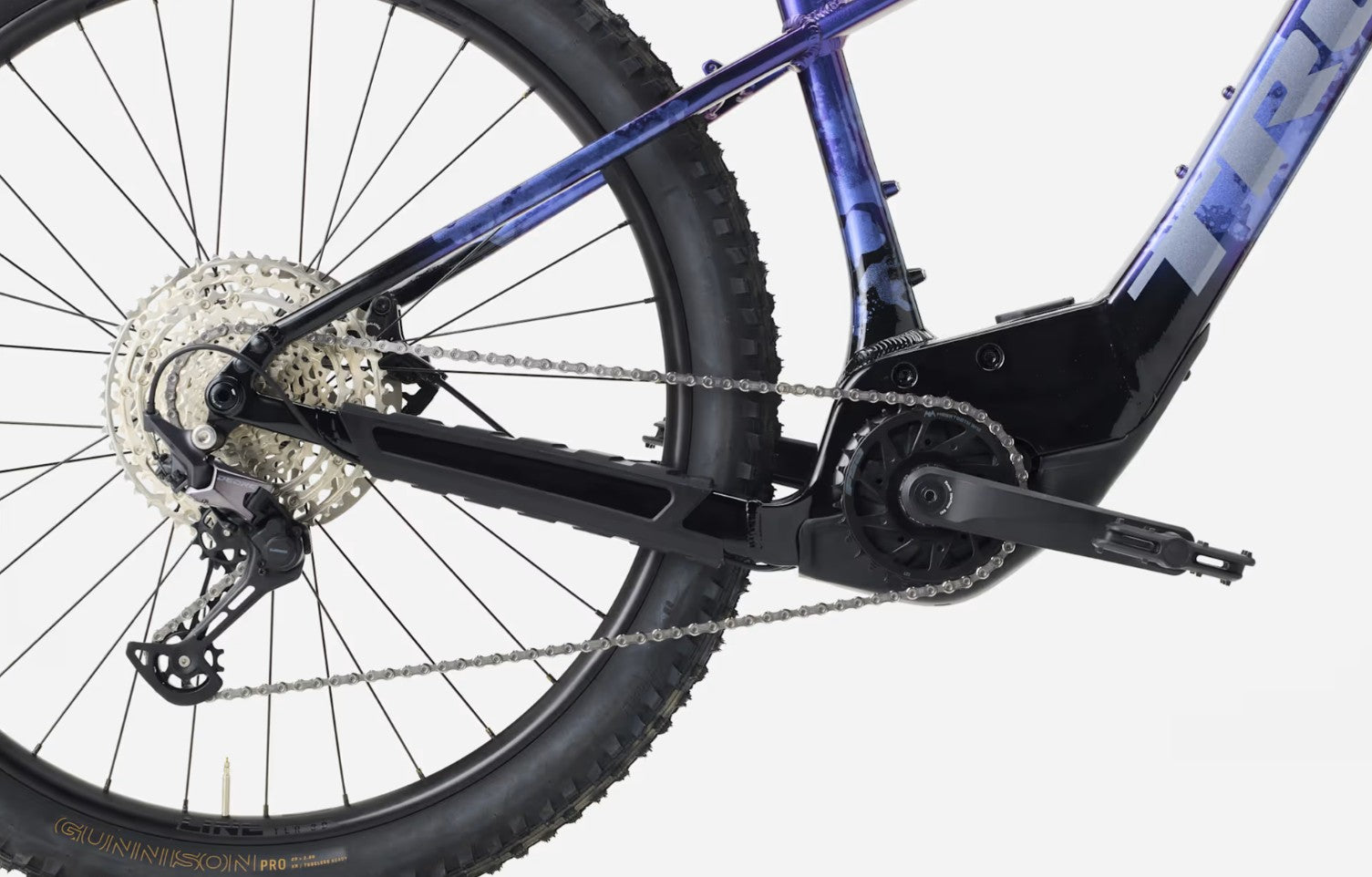

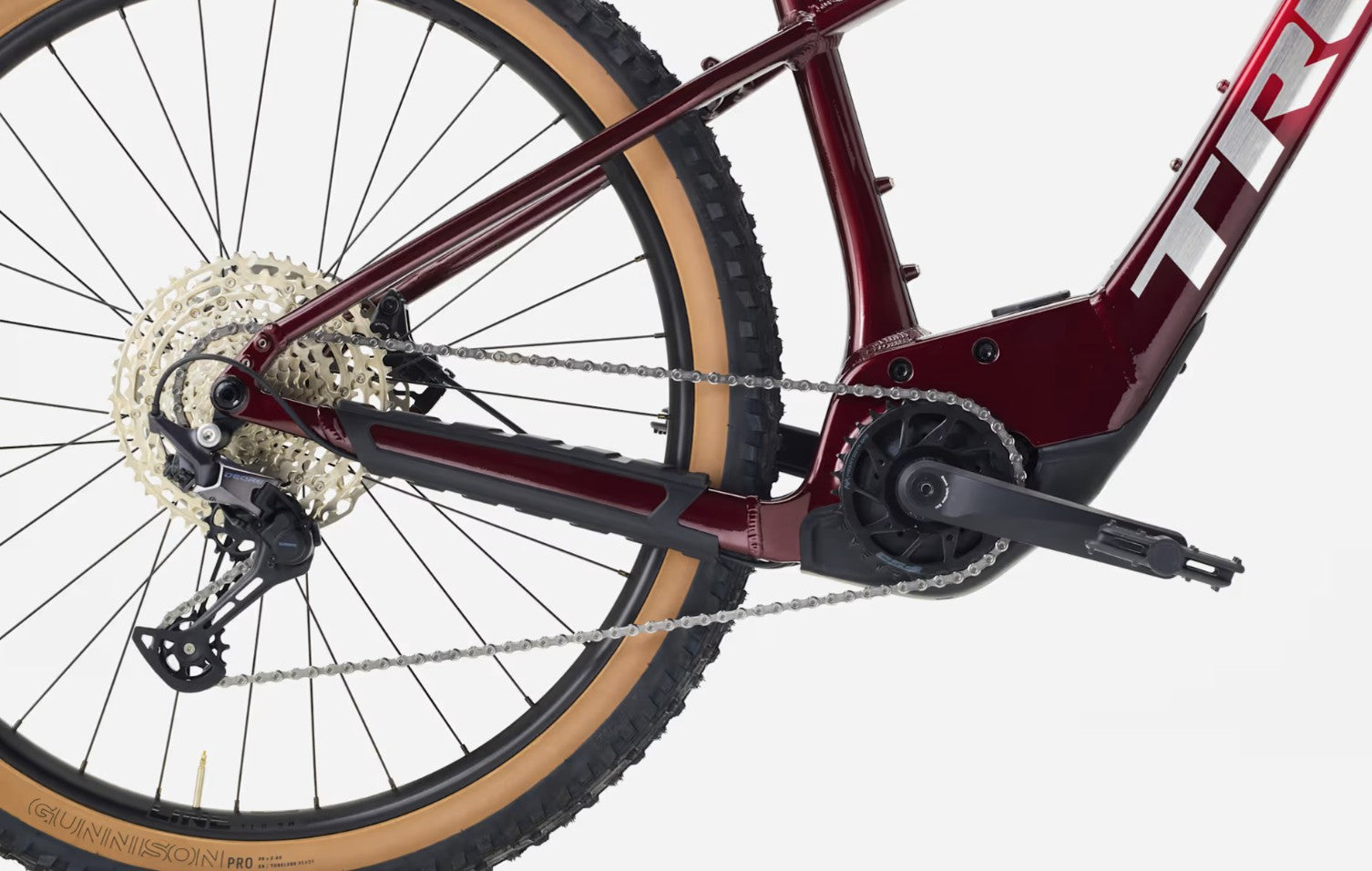

Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.
Specs:
- *Frame
-
Size: XS
Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axleSize: S , M , L , XL
Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle - *Fork
-
Size: XS
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travelSize: S
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travelSize: M , L , XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
- Hub front
-
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
- Hub rear
-
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
- Skewer rear
-
Bontrager Switch thru axle, removable lever
- *Rim
-
Size: XS , S , M , L , XL
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valveSize: XS , S , M , L , XL
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve - *Tyre
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Max tyre size
- Frame: 29x2.6" (XS: 27.6x2.6") Fork: See manufacturer
- Battery
-
Bosch CompactTube 400Wh
- Charger
-
Bosch standard 2A, 230V, smart system
- Computer
-
Bosch Purion 200
- Motor
-

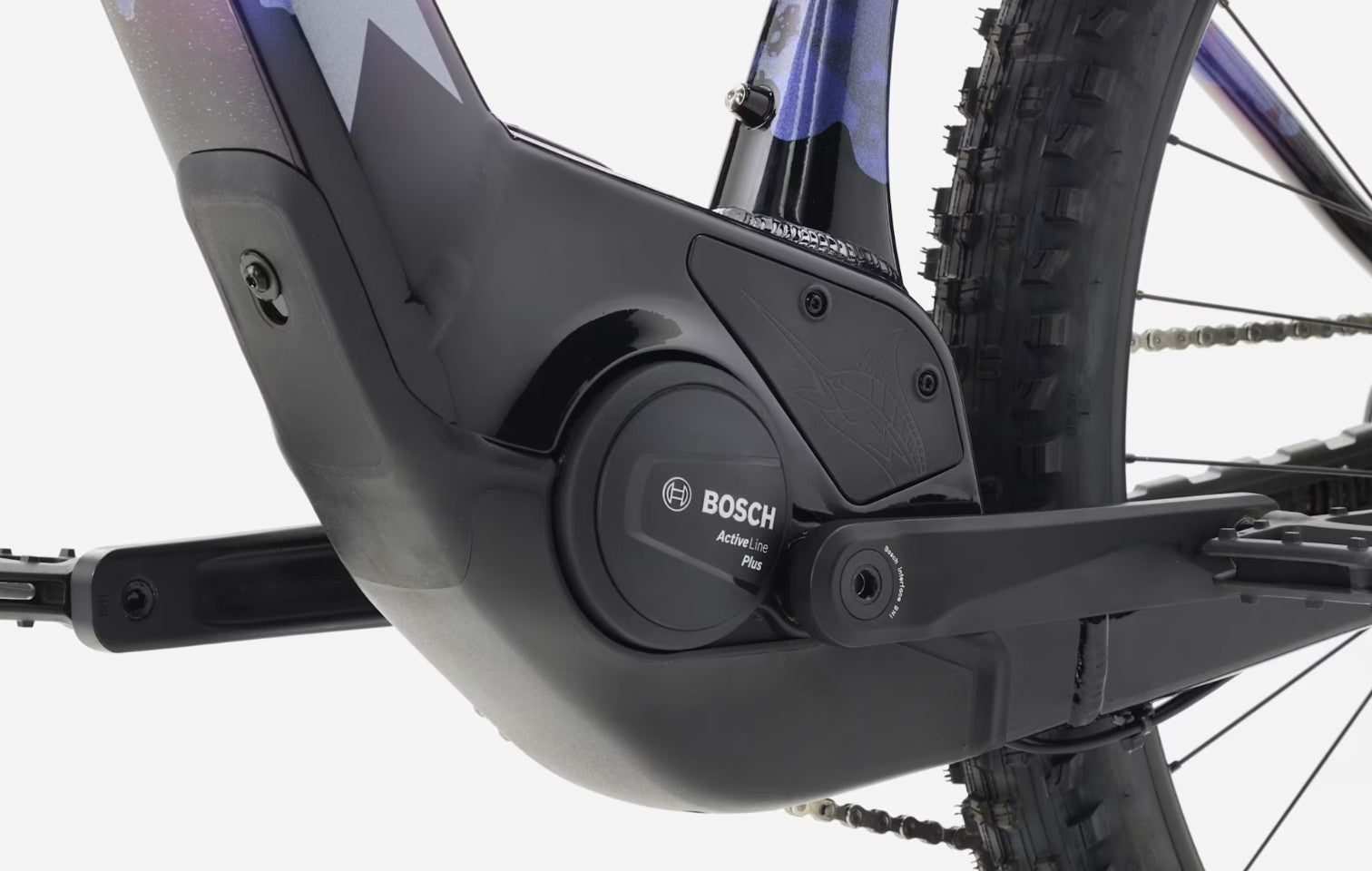

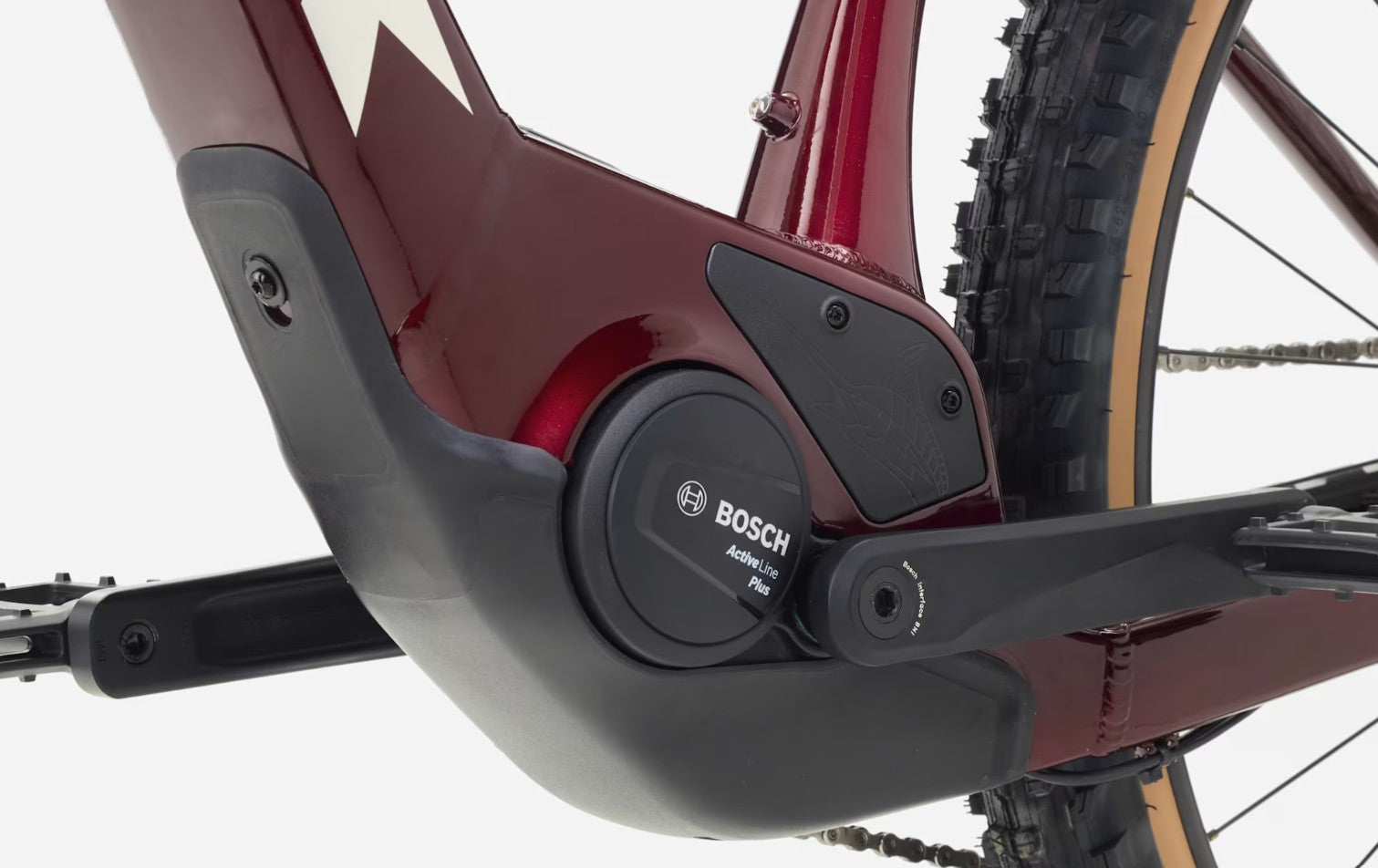

Bosch Active Line Plus, 50 Nm
- E-bike Classification
- Class 3
- Shifter
-
Shimano Deore M6100, 12-speed
- Rear derailleur
-
Shimano Deore M6100, long cage
- Crank
- Chainring
- Cassette
-
Shimano Deore M6100, 10-51, 12-speed
- Chain
-
Shimano Deore M6100, 12-speed
- Pedal
-
VP-536 nylon platform
- Max. chainring size
- 1x: 36T, min 32T
- Saddle
-
Bontrager Verse P3, chromoly rails
- *Seatpost
-
Size: XS , S
TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm lengthSize: M , L
TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm lengthSize: XL
TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length - *Handlebar
-
Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm widthSize: M , L , XL
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width - Grips
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm lengthSize: M , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length - Head set
- Brake
-
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
- Brake rotor
-
Shimano RT64, CentreLock, 203 mm
- Rotor size
- Max brake rotor sizes – Frame: 203 mm, min 180 mm, fork: see fork manufacturer
- Weight
- M - 21.89 kg / 48.26 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
